Palintest Turbimeter Plus – PTH092

Turbidity and Total Suspended Solids (TSS) are two of the
most important indicator parameters for water quality
monitoring. The new Turbimeter Plus has been developed
with leading water utility companies and provides the ideal
testing platform for drinking water, wastewater and safe water
monitoring.
• Fast and reliable results within 5 seconds
• Unique Quadoptix™ technology using four light paths
through the samples for increased accuracy
• Specifically designed for field use with storage for 1000
results and battery power for approximately 10,000 tests
• USB connectivity for power and data downloads
• IP67 certified with a waterproof USB socket

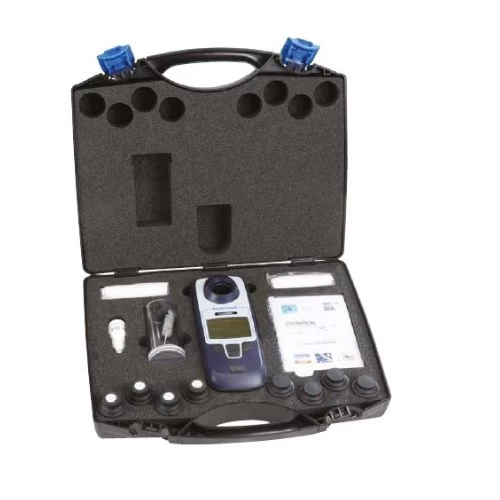

Kit includes :

Instrument, 4 SDVB calibration standards, 4 sample test tubes, silicone oil, dilution tube, cleaning cloths, instructions. Supplied in a hard case. Replacement SDVB calibration
standards provided in hard case with certificate.



Sample Tubes – Pack of 5 glass test tubes with caps, 25mm (outer diameter) with 10 mL graduation

Silicone oil, 10 mL

Cuvette Brush For cleaning test tubes, 120 mm length



Technical Specifications :

Optical System
Instrument Range
Display
User Interface
Result Units
Modes
Data Storage
Size (W x L x H) & Weight
QuadoptiX™ optical system with two independent 860nm LED sources, ISO
7027 Compliant
0.01 – 1050 NTU
High clarity LCD with backlight
Soft key access with English, French and Spanish
NTU, FNU, FTU, mg/L (TSS mode)
Turbidity (normal, average, continuous capture), Total Suspended Solids
1000 results including date, time, sample ID, operator ID and mode. Last 12 good
calibrations including Operator ID
82 x 225 x 50mm, 340 g
Power Supply
2 x AA batteries or via USB
