Aquaquip LED Light EVO MAX Multi Colour

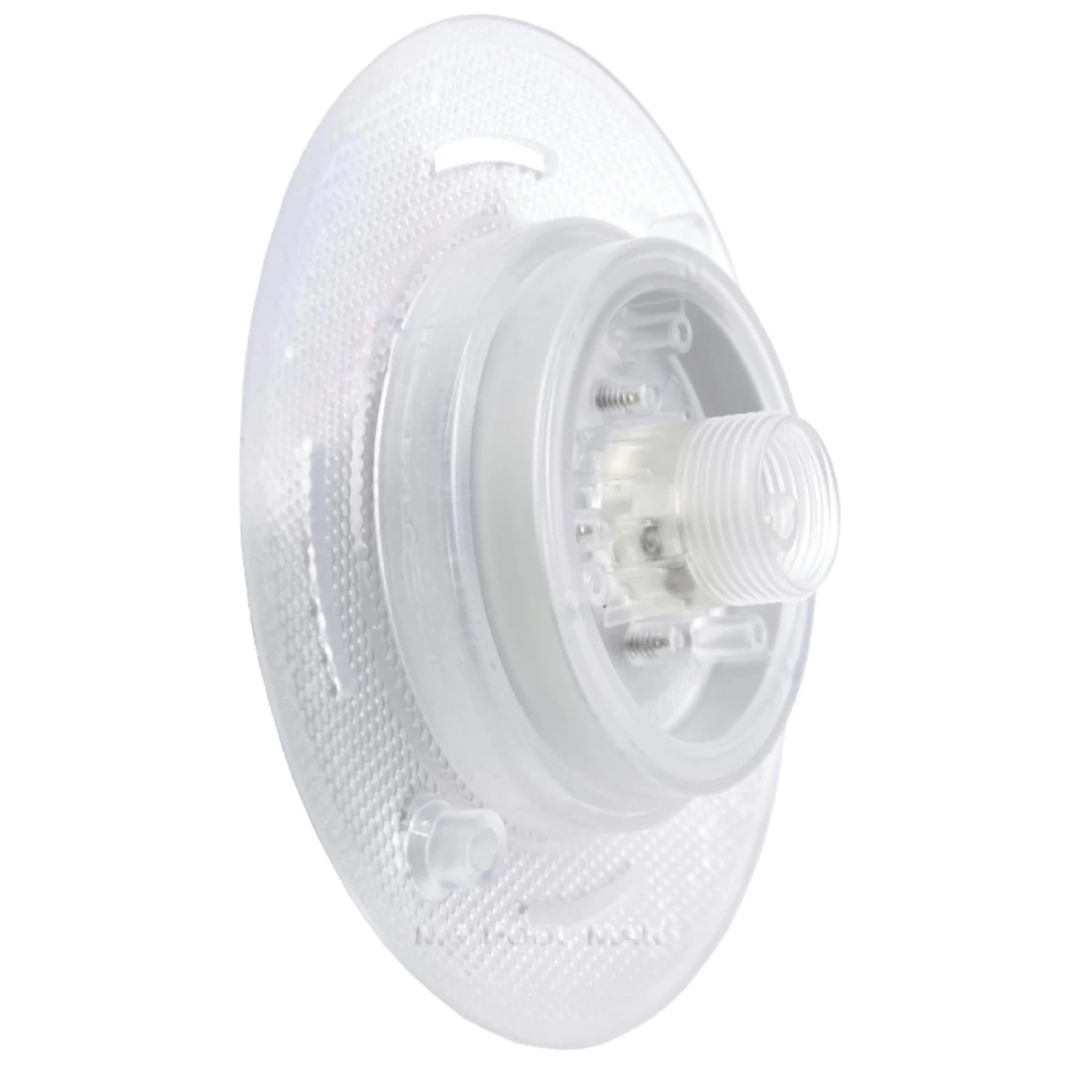

EvoMAX offers maximum illumination whilst preserving a flush profile. It has a lens illumination surface 45% larger than Evo2. The wet-niche LED Lighting System connects to the same cable and housing as Evo2, the difference is the lens area and the fact that the one-piece diffused acrylic lens extends beyond the dress ring providing increased beam spread and side-lighting effects

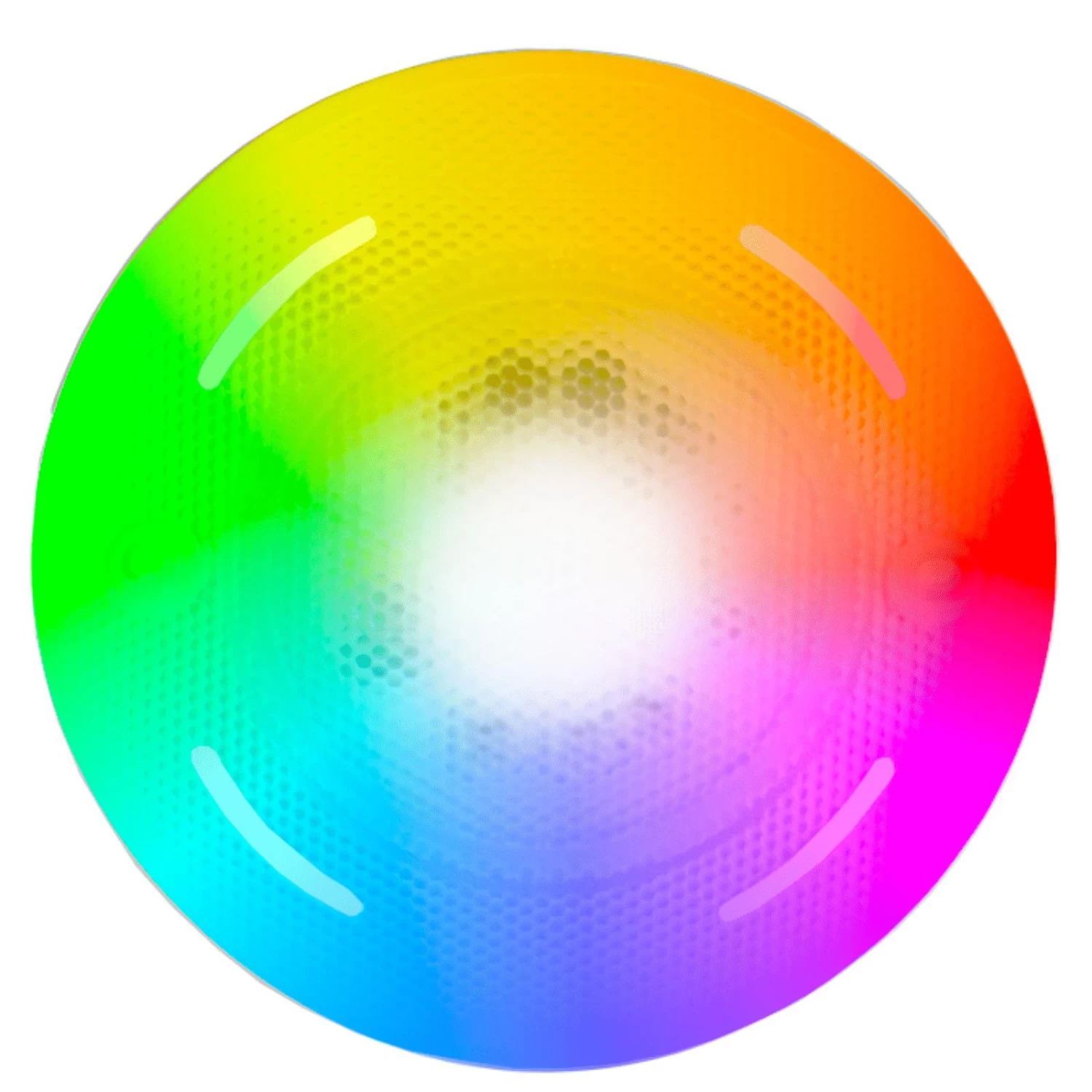

The multi-colour EvoMAX LED light features Aqua-Quip’s unique Colour Selection Palette which provides an almost limitless variety of colour possibilities and a vast array of pre-programmed scroll and flash modes.

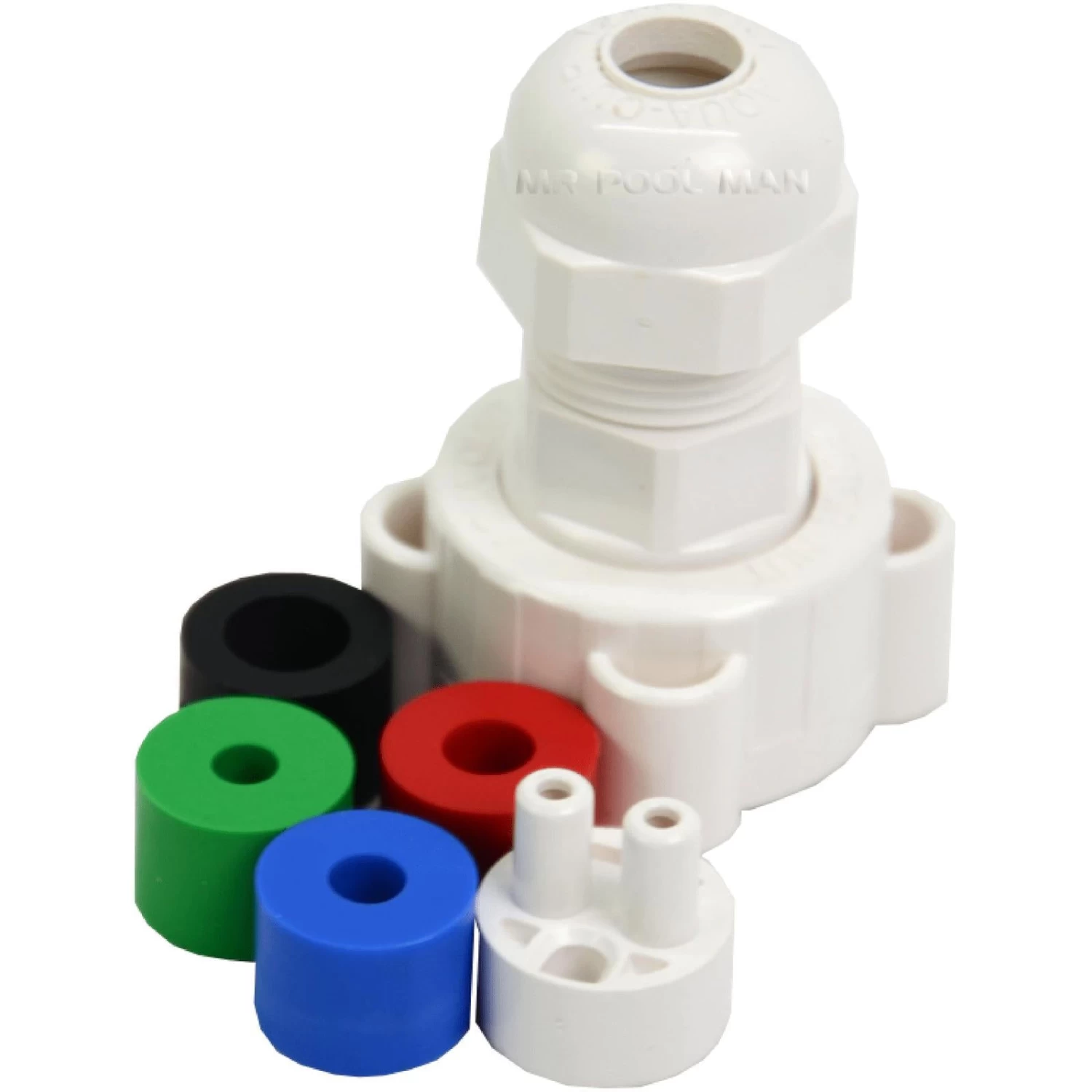

Connects using the innovative Quick Connect Plug Kit, EvoMAX maintains a flush profile protruding just 9mm from the pool wall. ​Evo MAX LED Pool Lighting for Existing Pools.

The elegance of the lighting system can be further enhanced with the addition of the optional stainless steel trim ring creating some spectacular visual effects. The EvoMAX system incorporates the latest generation LED technology and thermal management system to ensure maximum light output and reliability. In addition, EvoMAX lights are energy efficient, the entire system is extra-low-voltage ensuring safety at all times.

Key Points –

• Super bright, energy efficient, long life
• Multi Colour LED Light
• Detachable cable for easy installation
• Stainless steel dress ring available
• Made in Australia to all relevant Australian standards and regulations
• Suitable for concrete pools and retro-fitting.
• 12 months warranty via Mr Pool Man



Easy Installation Notes:

Installing or upgrading your current pool lighting system can be done in as fast as 15 minutes per light fixture!

• To be completely safe, turn off the mains to everything connected to your pool.
• Ensure that your power supply is currently outputting 12v. If not, you will need a pool LED light transformer.
• Unmount your existing pool light (be sure to keep the screws in a safe place) and bring the lights at least a meter away from the surface edge of the pool and on to a towel to be safe.
• Cut the cable as close to the existing light as close as possible.
• Wipe down everything (including your hair!) to prevent water from dripping into exposed wires before you strip and connect the new lights according to the included instructions.
• Test the pool light, coil the cable to the rear of the light and re-mount back into the pool.
• Don’t forget to re-set your pool timers.



To change the colour on a Multi Colour or TRI colour LED pool light you need to toggle the on and off switch (power point) to cycle through the colour settings. Once you find the preset you like, leave the light on for 10 seconds and it will memorise that colour choice and you can then set the light to a timer and it will always revert back to your last colour setting.

To change the colour simply repeat the step above
